Hydraulic Folders

Every Trim. In-House.

Bend roofing and wall trim, flashing and custom profiles on demand with one precision hydraulic folder. 13 and 21 ft, single and double folder configurations, commissioned by ACERO.

See the Specs Watch It Run
ACERO hydraulic folding machine on the shop floor
01  /  Where trim goes

Every edge of the building

Eave, rake, ridge, valley, sidewall and endwall. The trim that finishes a metal roof is bent on a folder, at the length the job needs.

Stop waiting on trim. Bend it in your own shop, in your own colors, the day the panel ships.

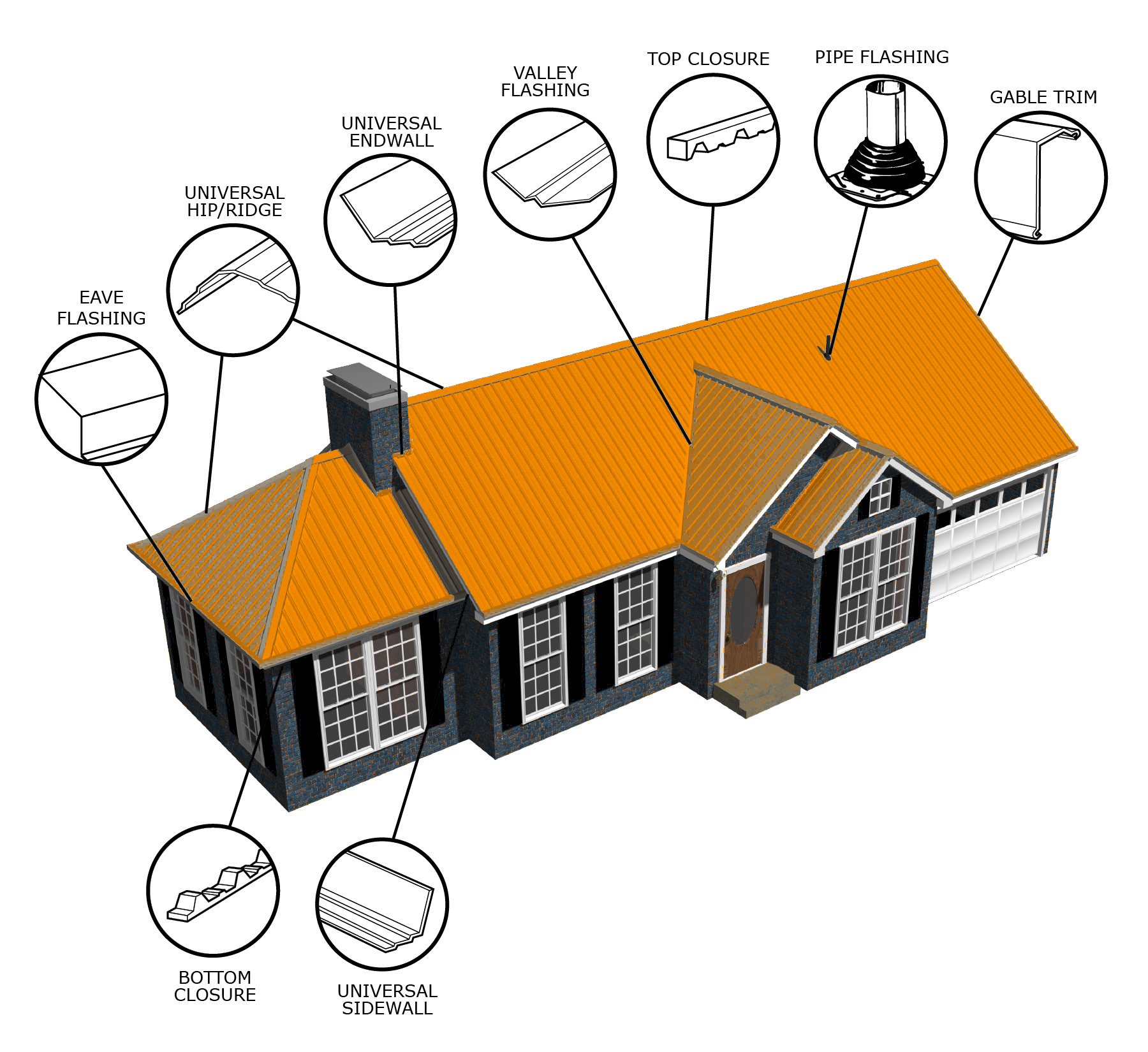

House diagram showing eave flashing, hip and ridge, endwall, valley flashing, top and bottom closure, pipe flashing, gable trim and sidewall
02  /  See it run

Flat sheet in. Finished trim out.

Clamp, bend, repeat. Each profile runs as a programmed bend sequence on the PLC, with no tooling change between parts.

Play video
Hydraulic folder lineup
13 & 21ft
Working length
0–125°
Bending range
18–29GA
Material range
19trims
Standard profiles
03  /  Trims available

Roof and wall trim, one machine

Each profile is a programmed bend sequence. Switch from ridge cap to J-trim without a tooling change.

Roof trims

10 profiles
01Wide Ridgecap
02Universal Ridge
03Residential Rake
04Rake
05Box Rake
06Residential Valley
07Wide Valley
08Residential Eave
09Short Eave
10Lower Gambrel

Wall trims

9 profiles
01Side Wall
02End Wall
03Door Post
04Base Trim
05J-Trim
06Inside Corner
07Outside Corner
08Double Angle
09Rat Guard

Any trim you can draw. These are examples. Send us your trim profiles for review.

Talk to ACERO →

Size limitations apply. Dimensions are representative and subject to material gauge, bend radius and machine capacity. Final profile to be reviewed and confirmed by the client and ACERO prior to production.

04  /  Capacity & control

Built to bend. Built to last.

Capacity

  • Steel, aluminum & stainless
  • 0 to 125 degree bending range
  • Single & double folder configurations

Control

  • Siemens PLC touchscreen
  • English & Spanish PLC controls
  • Integrated slitter
  • Servo-driven positioning
05  /  Every trim. In-house.

13 ft or 21 ft — which fits you

Both run single or double folder configurations. Pick the length that matches the trim you sell.

Folder A13 ft Folder
Folder B21 ft Folder
Working length
13 ft (4 m)
21 ft
Capacity
Up to 20 gauge
18 to 29 gauge, by material
Clamping
5 hydraulic press clamps
Full-length hydraulic clamping
Controls
Siemens PLC, encoder angle, integrated slitter
PLC touchscreen bend sequences

Gauges and lengths are nominal. Final configuration is confirmed at quote.

Every line, before it ships

Inspected.
Commissioned.
Ready.

ACERO sets up the folder, bend library and controls for the trim you sell — then supervises installation and commissioning on your floor.

Talk to ACERO about your line.
