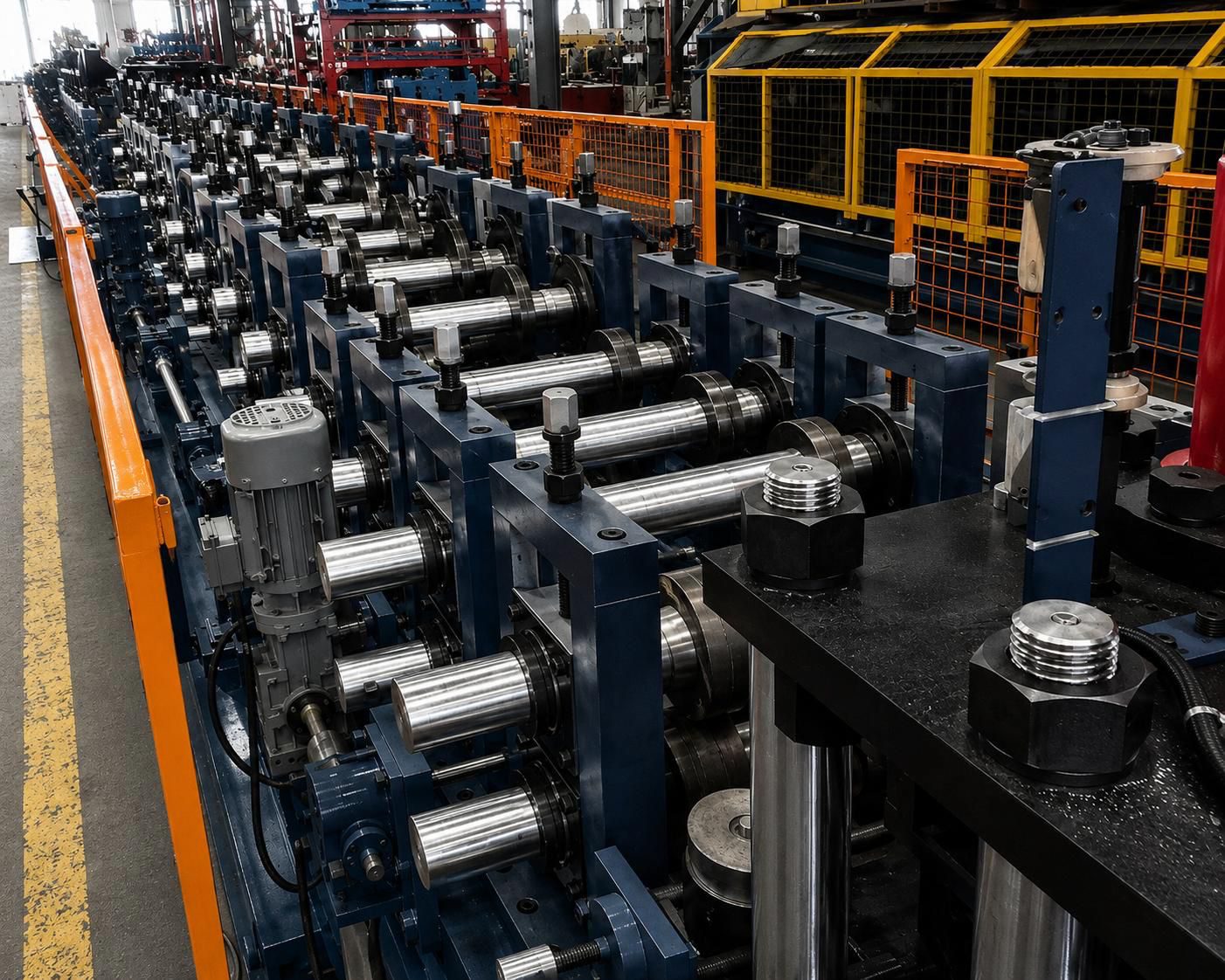

Stud & Track Roll Forming Machines
Every Stud. Every Track.
C-studs and U-track punched, cut to length and ready for the job site. US-engineered, specified and commissioned by ACERO.
From commercial buildings to residential homes and garages

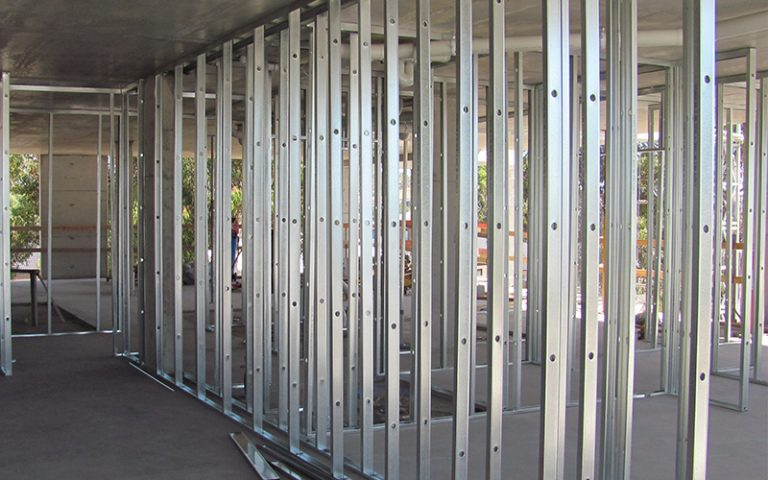

Steel stud and track is the framing behind interior walls in homes, garages, offices and commercial build-outs. Two members do the work.
The vertical member
The C-stud stands upright in the wall and carries the drywall sheet fastened to its face.

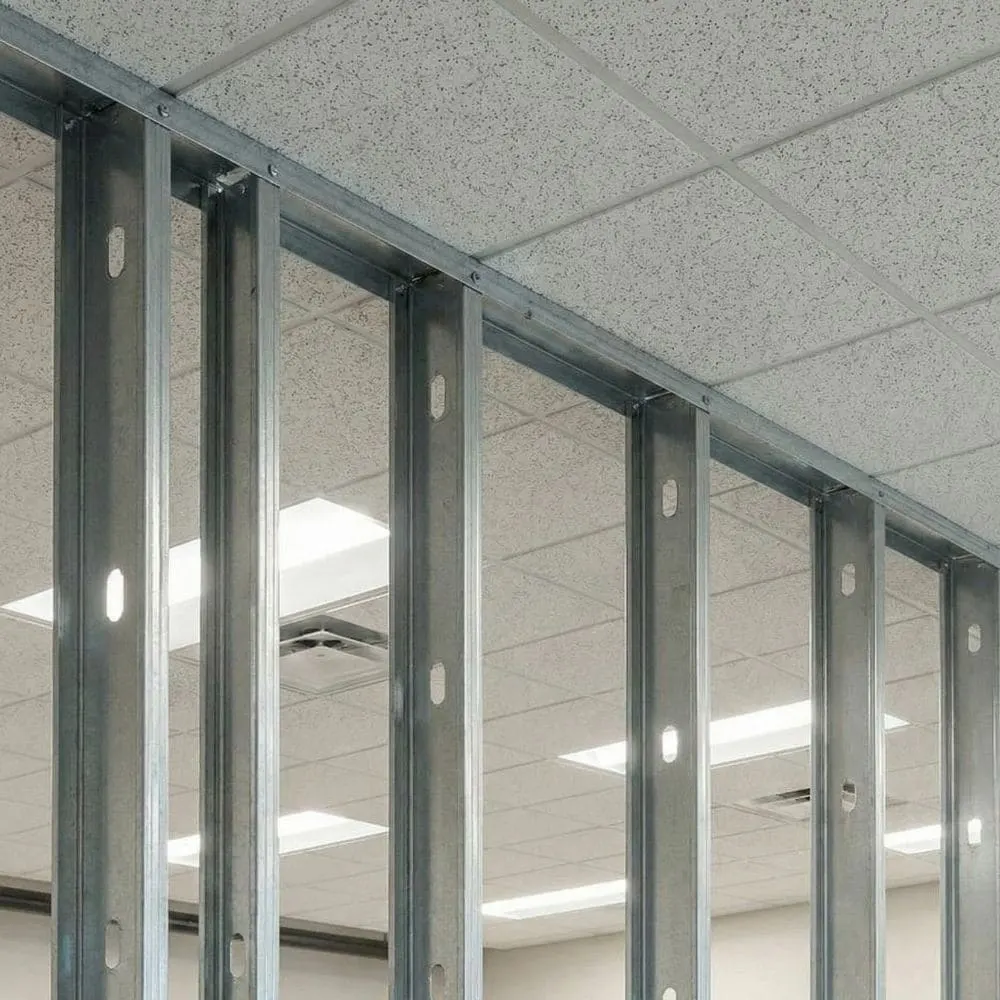

Top and bottom
The U-track runs along the ceiling and floor, fastened down, and holds each vertical stud in place.

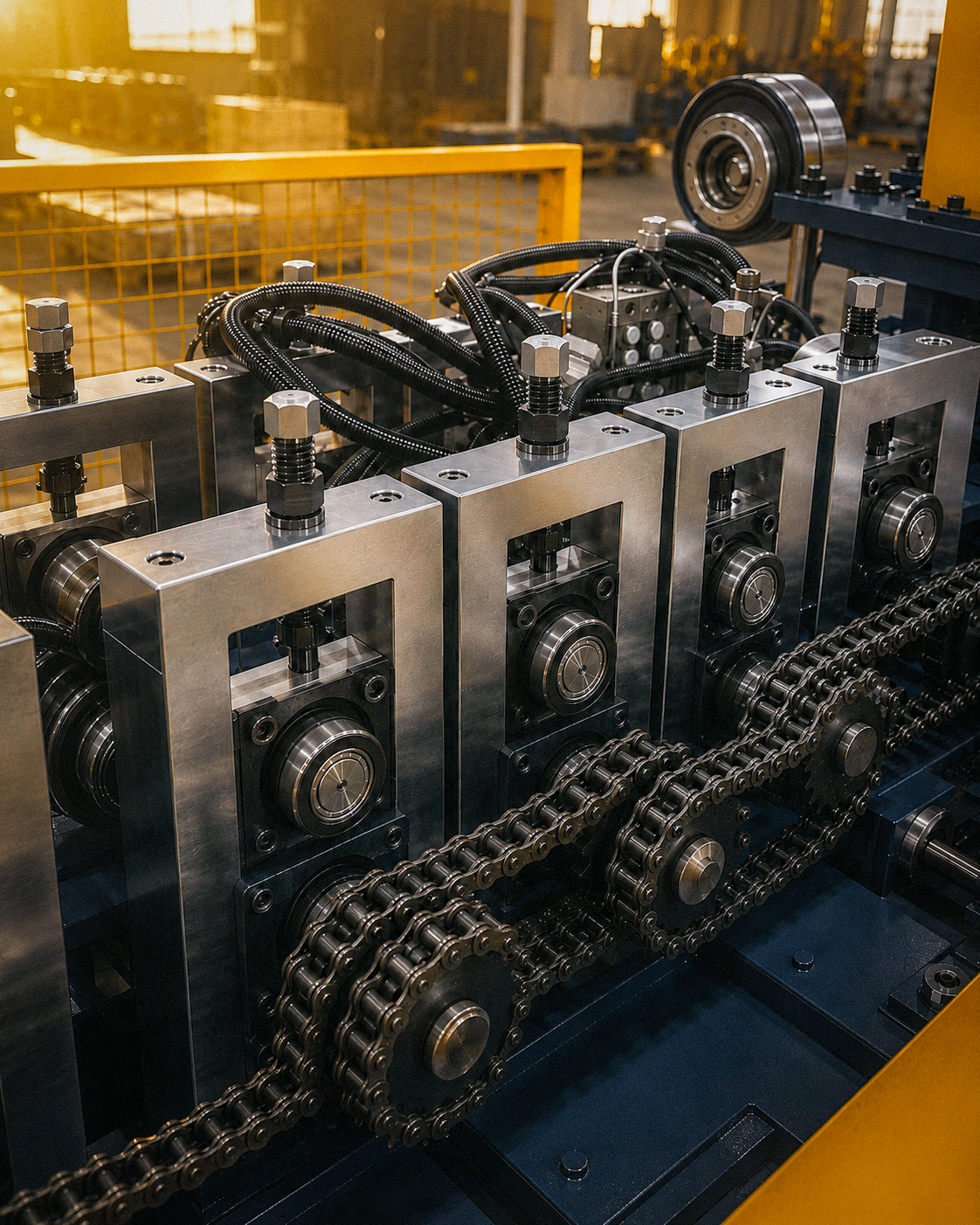

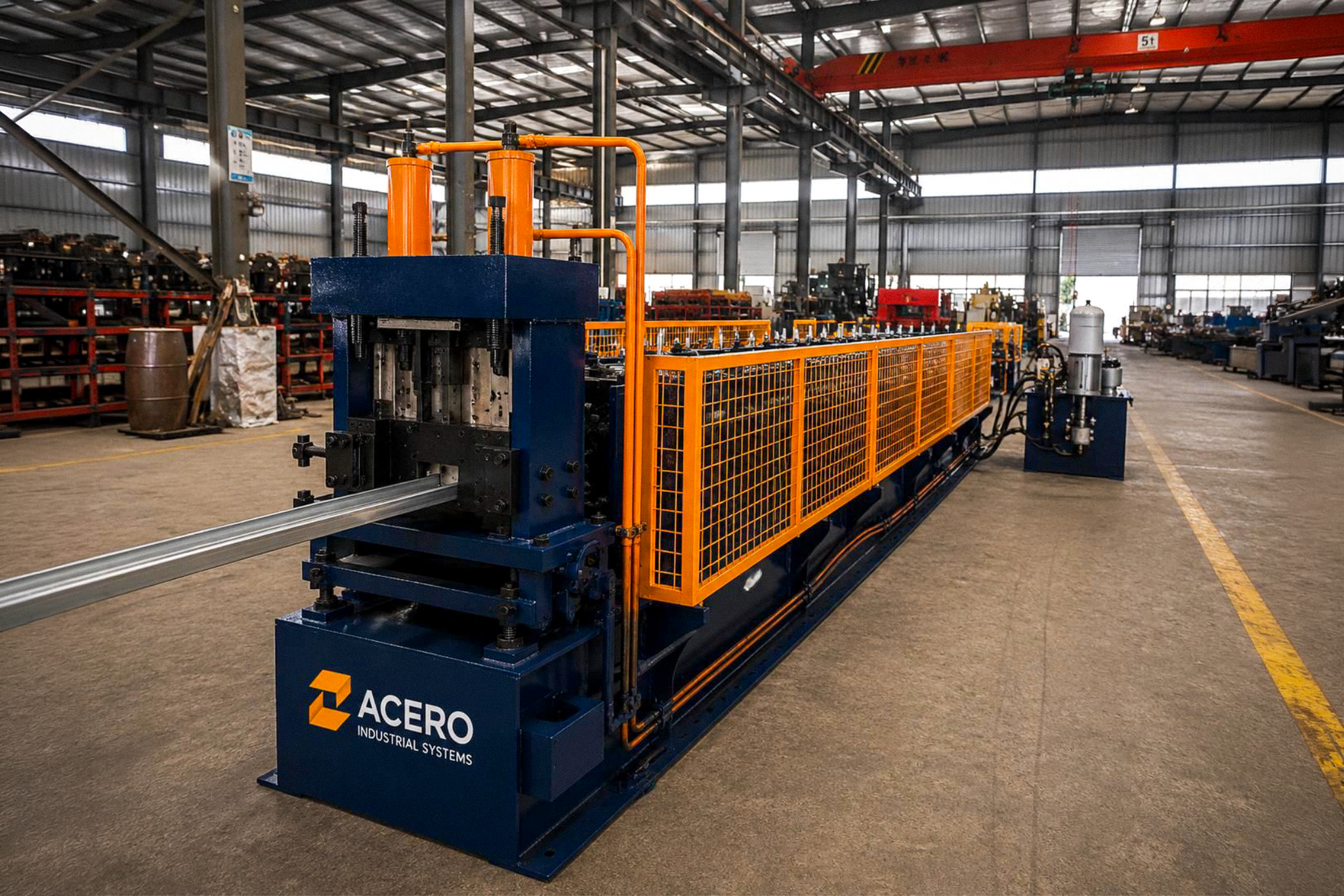

Alpha Series with automatic stacker
Coil in, stacked and ready to ship. The Alpha line forms, punches, cuts and stacks stud and track without an operator touching the part.
Two profiles. One line.
C-stud, U-track and slotted track for commercial and residential framing, formed, punched and cut to length in a single pass.

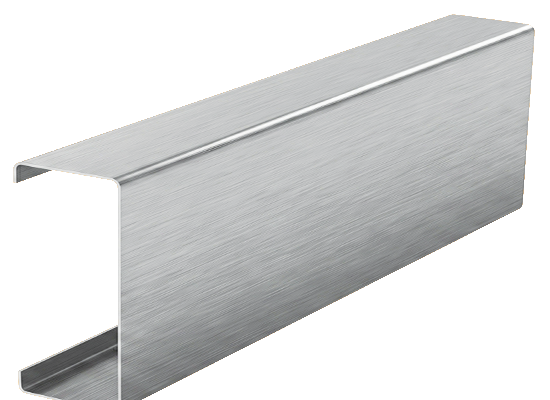

C-Stud
Load-bearing and non-structural studs with lipped flanges, punched for service holes in line.

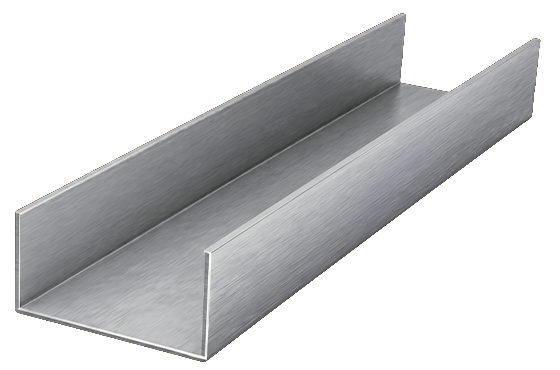

U-Track
Top and bottom track to receive the stud — same web range, run on the same line.

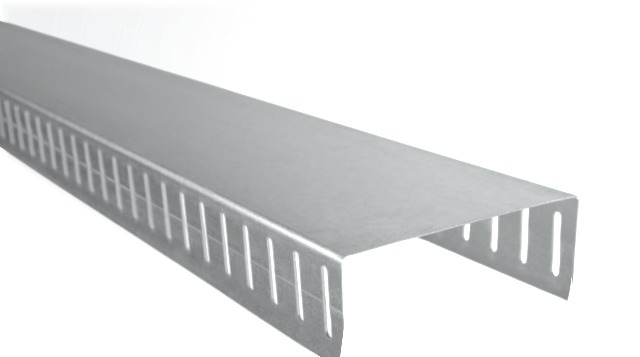

Slotted Track
U track with vertical slots punched along both legs, so studs can move with the structure above while staying fastened.
to 10″
Across Genesis, Alpha and Maximus. Programmable lengths, programmable punch patterns.
Built to produce. Built to last.
Capacity
- Up to 165 ft/min*
- 12 to 20 GA steel
- In-line hydraulic punching
Control
- Touchscreen PLC controls
- English & Spanish interface
- Programmable punch patterns
Punched in line. Service holes, knockouts and screw holes are programmed through the PLC — no secondary operation.
Add to your line
Build automation into the line as your production grows.

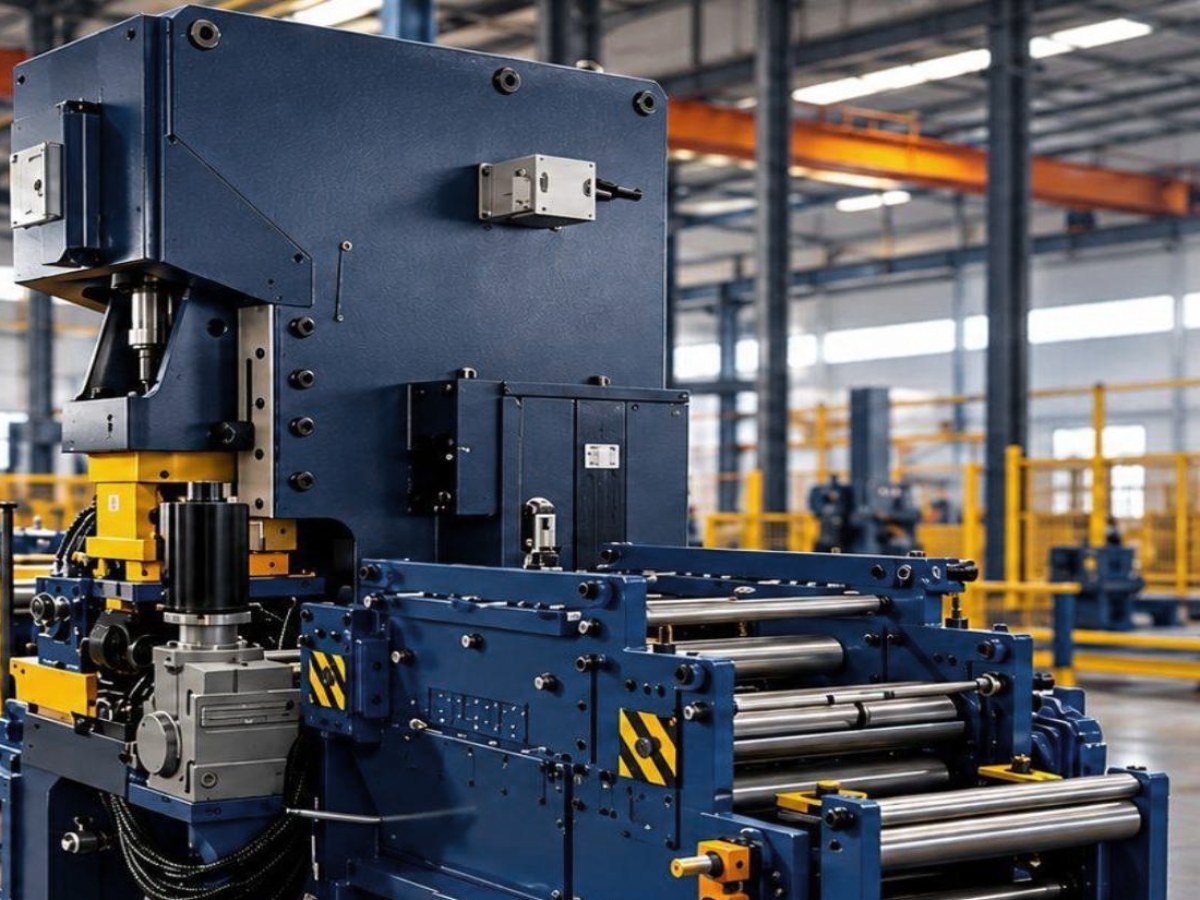

80-Ton Hydraulic Punching
Punches the web of the strip before it is formed.
80 ton · 19.7 in step

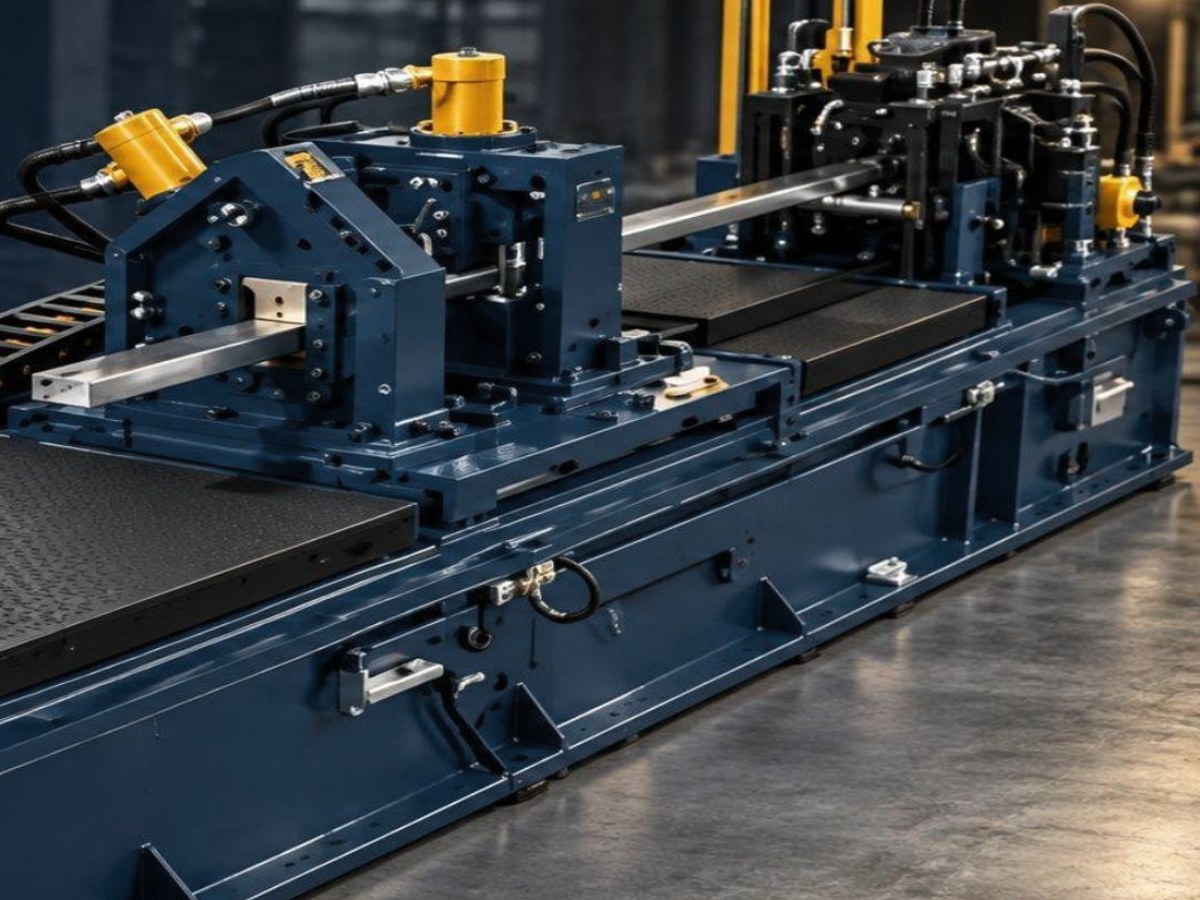

Flying Punch & Post-Cut
Punches and cuts on the move, without stopping the line.
15 kW servo · ±2 mm cut

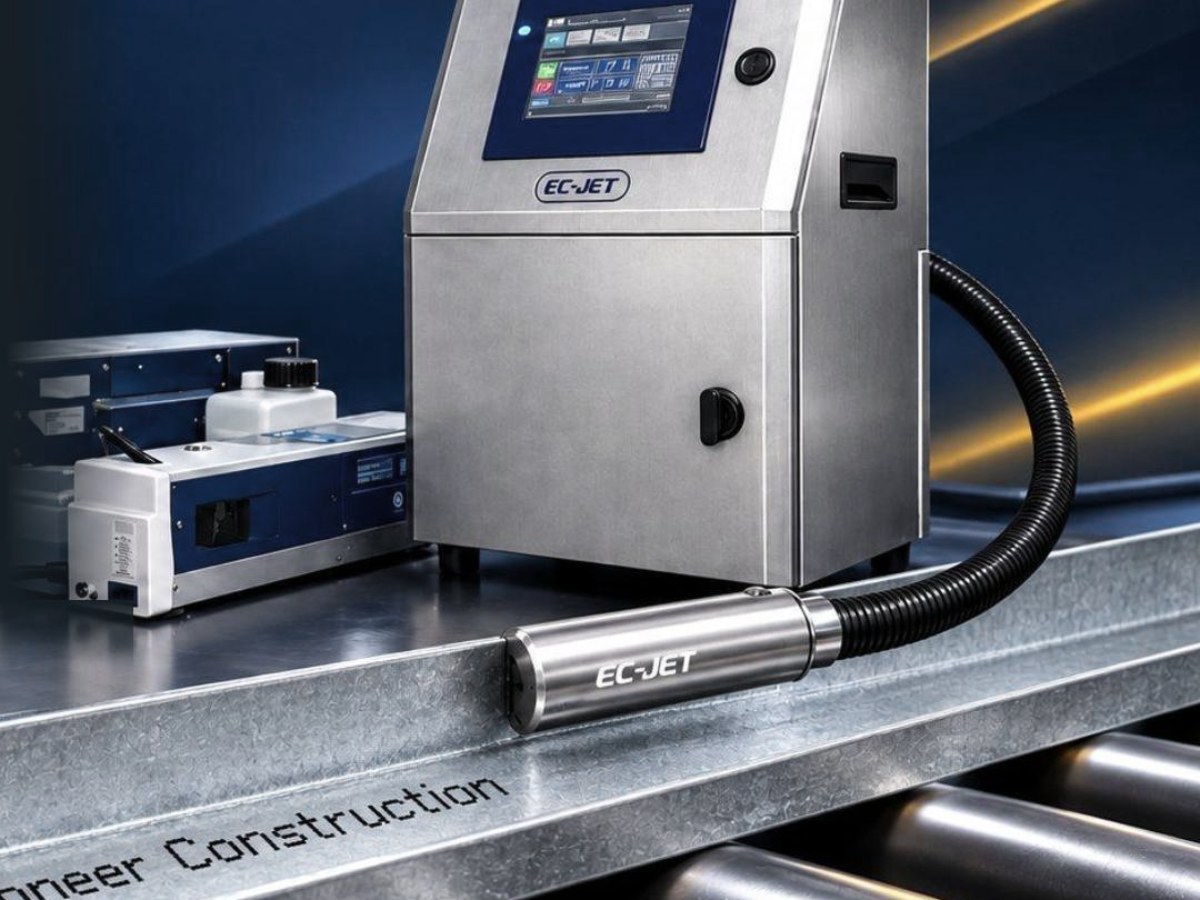

Inline Profile Marking
Prints job or customer information on every profile after the cut.
Inkjet marker

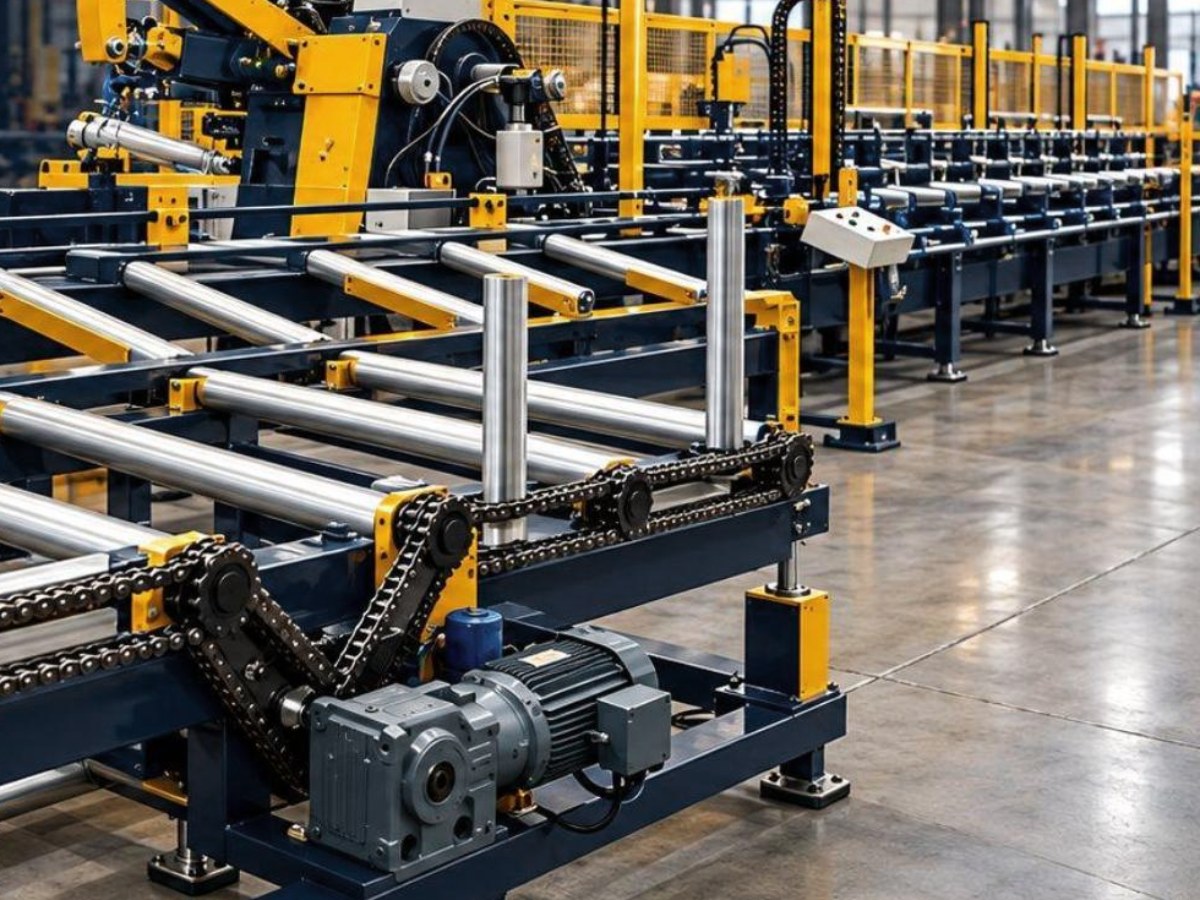

40 ft Pneumatic Stacker
Air cylinders side-push finished profiles onto a pallet.
Stacks 8.2–39.4 ft

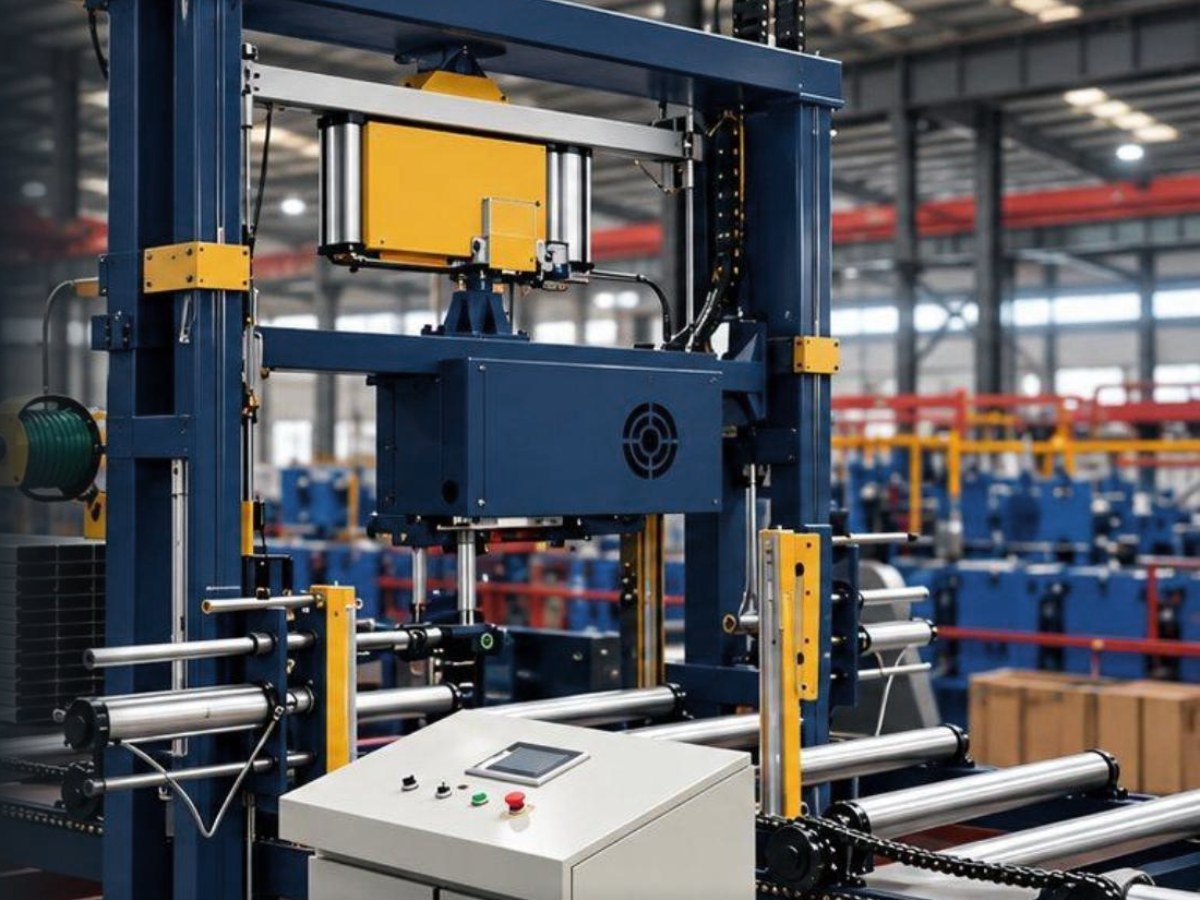

Powered Runout & PET Packing
Carries each stack into the strapping machine and out again.
25 mm PET · 10–15 s cycleMachine platforms — which fits you
Three stud & track platforms, built around the stage your business is in. Growth stages, not good-better-best.
*Max line speed is forming speed. Finished output varies with punch pattern and cut length.
Gauge reference (structural): 20 ga ≈ 33 mil · 18 ga ≈ 43 mil · 16 ga ≈ 54 mil · 14 ga ≈ 68 mil · 12 ga ≈ 97 mil. Web sizes and gauges are nominal. Final material thickness, flange and leg sizes are confirmed at quote.
Punched in line
Service holes, knockouts and screw holes programmed through the PLC.
Stud & track vs light gauge steel
Stud & track lines run straight members by the piece. LGS machines punch and notch every member to a frame file.
Inspected.
Commissioned.
Ready.
ACERO specs the platform, the tooling and the stacker to the profiles you run — then supervises installation and commissioning on your floor.
Talk to ACERO about your line.
